Material level, Water level, Oil level
Good products help businesses grow
Level Measurement
Level detection is quite important in industrial production and different levels have their specific detection requirements. Level meters with different measuring principles are available for contact, non-contact or immersion level detection.
Open or closed tanks, whether the liquid is volatile or explosive, and whether the liquid is a mixture or a single solution are all factors to be considered.
HR7380 Wave Radar Water Level Gauge
Transmission frequency: 76GHz~81GHz
Measurement Range: 0~15m,0~30m,0~60m
Measurement Accuracy: ±1mm
Beam Angle: 6°
Power Supply: 3.6V~5 VDC
Communication: TTL / NB / RS485
Working Temperature: -40℃~85℃
Housing Material: Aluminum alloy
Antenna Type: Lens antenna
Recommended cables: 7*0.3mm²
Protective Grade: IP68
Installation: Bracket
GLQ201W Wireless Liquid Lever Sensor
Material: PC
Wireless: Wifi & Blueetooth
Application: Water /Oil Tank
Usage: Home Automation System
Operating Temperature: -20~70℃
Operation System: Android, lOS APP
APP : Tuya SmartLife
Measuring Range: 0.1m~4.0m
Accuracy: ±0.02m
Power Supply: 100-240VAC or DC 5V
Single package size: 18X18X7 cm
Single gross weight: 0.400 kg
HR7380E Wave Radar Water Level Gauge
Measurement Range: 60m
Measurement Accuracy: ±1mm
Radar Frequency: 80GHz
Beam Angle 6°
Built-in Lithium Battery: 12.8V 11000mAH
Suggested Solar Panels: 20W,18V (Vmp)
Collection interval: minimum interval of 1 min
Data Reporting: Hour reports, timed reports, and triggered
Digital Interface: RS485，MODBUS
Wireless Transmission: 4G
Sim Card: Build-in
Antenna: Rod-shaped
Housing Material: Aluminum alloy
Protective Grade: IP68

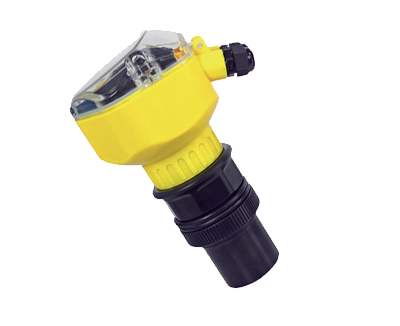

DYYX Ultrasonic Level Meter
Range: 5m, 10m, 15m, 20m, 30m, 40m, 50m
Accuracy: 0.5% - 1.0%
Resolution: 3mm or 0.1%
Display: LCD
Output:
4-wire, 4～20mA/510Ω load
2-wire, 4～20mA/250Ω load
Relay:
Optional 2 AC 250V/5A or DC 30V/5A
Status can be set
Power Supply:
24VDC, 12VDC, optional 220VAC 50Hz
Communication: RS485 or RS232
Protection Level:
IP65 for meter, IP68 for Head
Head Cable: None
