Consumer Grade Pressure Sensors

Consumer grade pressure sensors are cost-effective sensing solutions primarily based on MEMS pressure sensing elements. They are typically packaged using plastic or ceramic housings and optimized for high-volume applications with standardized operating conditions.

These sensors are widely used in medical devices, electronics, automotive systems, and household appliances. The design focus is on compact size, low power consumption, and economical integration rather than extreme environmental resistance.

XGZP-6899A Pressure Sensor

-100kPa…-0.5~0~0.5…700kPa
Differential Pressure Type
For Non-corrosive Gas or Air
Optional 5V and 3.3V Voltage
Calibrated Amplified Analog Signal
Temp. Compensated: 0℃~60℃

XGZP-6899D Pressure Sensor

-100kPa…-0.5~0~0.5…700kPa
2.5V~5.5V Power Supply
Differential Pressure Type
For Non-corrosive Gas or Air
Calibrated Digital Signal(I2C Interface)
Temp. Compensated: 0℃~60℃
Temperature Measurable

XGZP-6897D Pressure Sensor

-100kPa…-0.5~0~0.5…200kPa
2.5V~5.5V Power Supply
Differential Pressure Type
For Non-corrosive Gas or Air
Calibrated Digital Signal(I2C Interface)
Temp. Compensated: 0℃~60℃
Temperature Measurable

XGZP-6897A Pressure Sensor

-100kPa…-0.5~0~0.5…200kPa
Differential Pressure Type
For Non-corrosive Gas or Air
Optional 5V and 3.3V Voltage
Calibrated Amplified Analog Signal
Temp. Compensated: 0℃~60℃

XGZP-6895D Pressure Sensor

-100kPa…-0.5~0~0.5…700kPa
2.5V~5.5V Power Supply
Differential Pressure Type
For Non-corrosive Gas or Air
Calibrated Digital Signal(I2C Interface)
Temp. Compensated: 0℃~60℃
Temperature Measurable

XGZP-6895A Pressure Sensor

-100kPa~0~2.5…700kPa
Differential Pressure Type
For Non-corrosive Gas or Air or Liquid
5V and 3.3V Voltage
Calibrated Amplified Analog Signal
Temp. Compensated: 0℃~60℃

XGZP-6891A Pressure Sensor

-10kPa…-0.5~0~0.5…10kPa
Differential Pressure Type
For Dry Non-corrosive Gas or Air
Optional 5V and 3.3V Voltage
Calibrated Amplified Analog Signal
Temp. Compensated: 0℃~60℃

XGZP-6891D Pressure Sensor

-100kPa…-0.5~0~0.5…100kPa
2.7V~5.5V Power Supply
Differential Pressure Type
For Non-corrosive Gas or Air
Calibrated Digital Signal(I2C Interface)
Temp. Compensated: 0℃~60℃
Temperature Measurable

XGZP-6887D Pressure Sensor

-100kPa…0kPa…700kPa 2.5V~5.5V Power Supply Pressure Type(Positive&Vacuum) For Non-corrosive Gas or Air Calibrated Digital Signal(I2C Interface) Temp. Compensated: 0℃~60℃ Temperature Measurable

XGZP-6887A Pressure Sensor

-100kPa…0kPa…700kPa
Pressure Type (Positive&Vacuum)
For Non-corrosive Gas or Air
5V and 3.3V Voltage
Calibrated Amplified Analog Signal
Temp. Compensated: 0℃~60℃

XGZP-6886A Pressure Sensor

0~100…1000kPa
Absolute Pressure Type
For Non-corrosive Gas or Air or Liquid
Calibrated Amplified Analog Signal
Temp. Compensated: 0℃~85℃
Direct Application, Low Cost

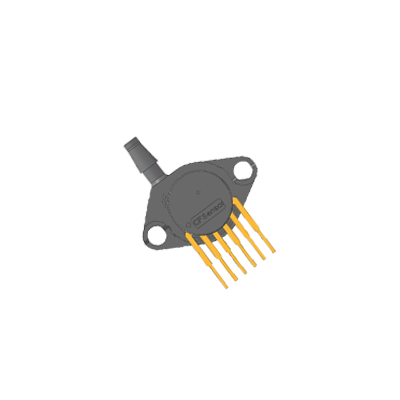

XGZP-6885A Pressure Sensor

-100kPa…0kPa…700kPa
Gauge Pressure Type
For Non-corrosive Gas or Air
Optional 5V and 3.3V Voltage
Calibrated Amplified Analog Signal
Temp. Compensated: 0℃~+60℃
