XGZP-183 Pressure Sensor

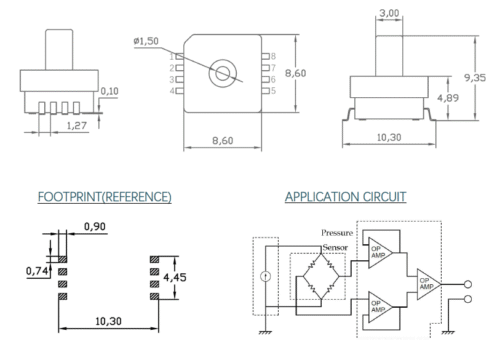

XGZP183 is a surface mounting pressure sensor based on CFSensor silicon-glass based piezoresistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 6-pin SOP. The small size and high reliability of on-chip integration make this sensor a simple and economical choice for high volume application in a variety of industries. With standard SOP8 package, XGZP183 is easy for users to install by SMT assembly.

With good repeatability, linearity, stability and sensibility, XGZP183 is very facile for users to calibrate output & thermal drift and make temperature compensation by using exterior operational amplifier or integrated circuit.(For calibrated pressure sensor if required, please refer to CFSensor pressure sensor module series)

The XGZP183 pressure sensor is intended for using with non-corrosive gas or air or liquid. It is highly prohibited to choke the side of pressure diaphragm during actual application. Please consult us if a pressure medium other then above media is to be used.
