XGZP-6863A Pressure Sensor

XGZP6863A is a perfect board mounted pressure sensor offering a ratio-metric analog interface for reading pressure over the specified full scale pressure span. The XGZP6863A incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC) in a SMT package.

The XGZP6863A is fully calibrated and temperature compensated for specified span, so XGZP6863A pressure sensor satisfy the perfect accuracy, which is designed for a wide range of applications in medical care&health, home appliances, consumer electronic, industry, automotive, loT and other pneumatic devices etc by utilizing a microcontroller or microprocessor with A/D inputs.

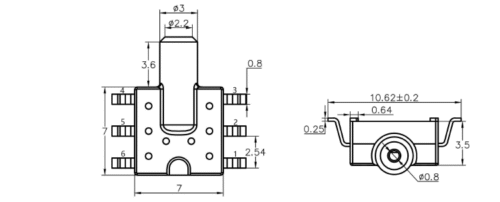

XGZP6863A pressure sensor is for high volume application at an affordable cost and perfect performance, especially for space saving due to the horizontal inlet structure.
