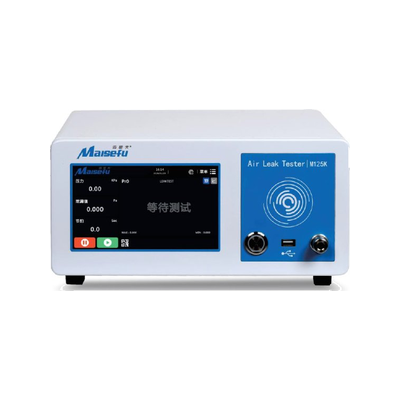

MSF-M125K Direct Pressure Air Tightness Tester
Direct-pressure method, resolution 1 Pa
Sensor accuracy FS 0.1 %
In-house pneumatic sealing valve for fast fill and stable readings
Automatic atmospheric zero calibration and temperature compensation
Test pressure 0 – 3500 kPa; driving air 0.4 – 0.8 MPa
Economical and widely used – no reference sample needed
Overview
The MSF-M125K is the direct-pressure version. Only the part is pressurised and its own pressure trace is watched over the test cycle – no reference sample, so the fixture is simpler and cheaper than a differential bench. The instrument compensates atmospheric pressure and temperature electronically, which is what makes a single-circuit measurement usable in a production shop.
Key features
- Direct-pressure principle, highest resolution 1 Pa
- In-house pneumatic shut-off valve – ensures filling speed and internal stability of the part
- Economical and practical, cost-effective, widely used
- Full-touch 7-inch high-definition colour LCD
- Independently developed automatic atmospheric-pressure zero calibration and temperature compensation
How the measurement works
The part is filled with air to the set pressure, then the pneumatic shut-off valve closes. If the part leaks, the pressure in the test circuit falls, and the pressure sensor decides whether a leak is present. Straightforward, but sensitive to temperature drift – which the instrument compensates.
Technical data
| Sensor accuracy | FS 0.1 % |
|---|---|
| Resolution | 1 Pa (24-bit) |
| Test pressure | 0 – 3500 kPa |
| Drive gas pressure | 0.4 – 0.8 MPa (driving pressure should be 0.1 MPa above the test pressure) |
| Pressure units | Pa, kPa, MPa, bar, PSI, kgf/cm², atm, mmHg |
| Leak-rate units | Pa, kPa, mbar, SCCM, CCM/s, Pa·m³/s |
| Display | 7-inch HD colour resistive touch screen |
| Parameter sets | 40 |
| Time setting | 0 – 99 999.9 s |
| Serial communication | RS485 / RS232 (optional) |
| Network communication | RJ45 (Modbus TCP) standard; PROFINET / PROFIBUS optional |
| USB interface | USB 2.0 – test record download, CSV format |
| Memory | 30-day test record, 128 MB |
| Language | Chinese / English |
| Environment | 0 – 50 °C |
| Power supply | 100 – 240 VAC, 60 W |
| Dimensions | L 320 × W 360 × H 165 mm |
| Weight | approx. 7 kg |
| External control input | 4 sets of PNP input signals |
| External control output | 4 high-level outputs |
| Pressure regulation | Mechanical (standard) / electronic (optional) |
Typical applications
- Large single cavities – tanks, housings, manifolds
- Valves and pipe assemblies
- Medical devices and packaging
- Household appliance components
- Any part where a reference sample is impractical
