CWY300 Digital Pressure Calibrator
Pressure range -1 to 2500 bar
Accuracy up to 0.02%FS
Supports gas and liquid media
USB and RS485/RS232 communication
Integrated data storage function
Portable rugged IP65 design
The CWY300 digital pressure calibrator is designed for high-precision calibration of pressure instruments in industrial and laboratory environments. It integrates standard measurement, process calibration, and data management into a single device, providing a comprehensive solution for pressure calibration tasks.
The calibrator supports a wide pressure range from vacuum to high pressure, covering -1 to 2500 bar. It is suitable for calibrating pressure transmitters, sensors, pressure gauges, and medical devices such as sphygmomanometers. With selectable accuracy levels up to 0.02%FS, the device ensures reliable and traceable calibration performance.
The CWY300 supports both gas and liquid media, allowing flexible use across various applications. Built-in data storage and communication interfaces including USB and RS485/RS232 enable efficient data logging, transfer, and integration into calibration systems.
Designed for demanding environments, the device features a rugged IP65 enclosure and supports long-term continuous operation. Its portable design and extended battery life make it suitable for field calibration as well as laboratory use in industries such as energy, manufacturing, medical, and research.
CW8610T Bench Pressure Comparator
V18 Pneumatic Pressure Pump
V17 Portable Hydraulic Pressure Pump

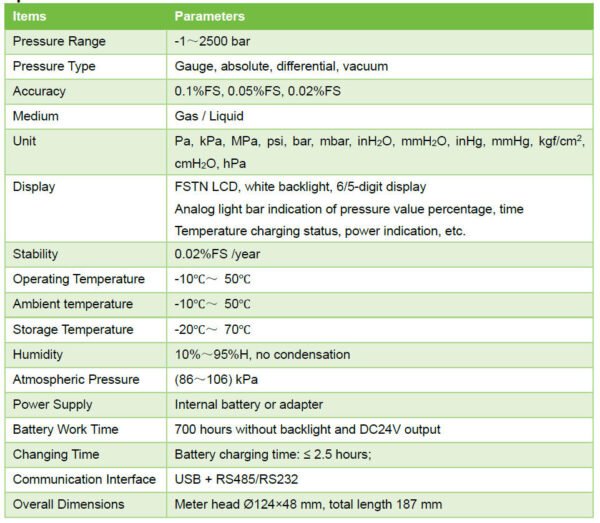

| Items | Parameters |
|---|---|
| Pressure Range | -1～2500 bar |
| Pressure Type | Gauge, absolute, differential, vacuum |
| Accuracy | 0.1%FS, 0.05%FS, 0.02%FS |
| Medium | Gas / Liquid |
| Unit | Pa, kPa, MPa, psi, bar, mbar, inH2O, mmH2O, inHg, mmHg, kgf/cm2, |
| cmH2O, hPa | |
| Display | FSTN LCD, white backlight, 6/5-digit display Analog light bar indication of pressure value percentage, time Temperature charging status, power indication, etc. |
| Stability | 0.02%FS /year |
| Operating Temperature | -10℃～ 50℃ |
| Ambient temperature | -10℃～ 50℃ |
| Storage Temperature | -20℃～ 70℃ |
| Humidity | 10%～95%H, no condensation |
| Atmospheric Pressure | (86～106) kPa |
| Power Supply | Internal battery or adapter |
| Battery Work Time | 700 hours without backlight and DC24V output |
| Changing Time | Battery charging time: ≤ 2.5 hours; |
| Communication Interface | USB + RS485/RS232 |
| Overall Dimensions | Meter head Ø124×48 mm, total length 187 mm |
Please refer other dimensions in datasheet
