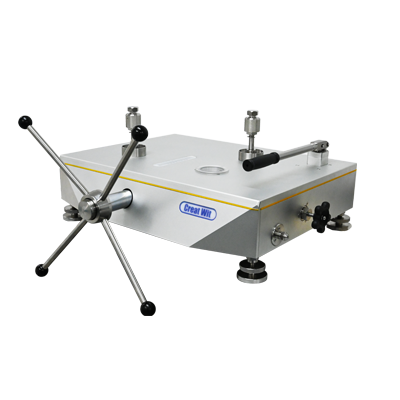

CW8610T Bench Pressure Comparator
Preloaded pressure rod design for fast pressure generation
Stable and precise pressure control for calibration tasks
Maximum pressure up to 400 MPa
Reduced risk of blockage caused by contaminated media
Designed for laboratory and high-pressure applications
The CW8610T Bench Pressure Comparator is engineered for high-precision pressure calibration in laboratory and industrial environments. Featuring a pressure rod type preload structure, it enables rapid pressure build-up while maintaining excellent stability and control throughout the calibration process.
Compared to portable hand pumps, the CW8610T offers superior pressure stability and is better suited for high-pressure and continuous calibration tasks. Its design effectively minimizes the risk of pipeline blockage caused by contaminated pressure media, improving reliability and reducing maintenance frequency.
With a maximum pressure range of up to 400 MPa, the CW8610T meets the demanding requirements of high-pressure calibration applications. It is fully compliant with JB/T599-2005 standards, ensuring dependable performance in professional metrology and testing environments
