GP-2000 Pressure Sensor
Range from 0.35 MPa to 70 MPa
Isolated oil-filled sensing structure
316L stainless steel housing

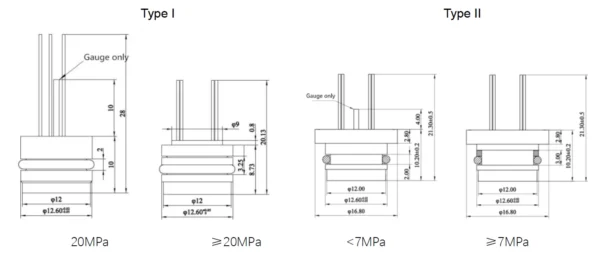

Compact size φ12.6 mm
Temperature compensated
High overload resistance
The GP-2000 isolated oil-filled pressure sensor is designed for reliable pressure measurement in demanding industrial environments. The sensor integrates a MEMS silicon sensing element with an oil-filled isolation structure, allowing the measured pressure to be transmitted through a stainless-steel diaphragm to the sensing chip. This structure protects the sensing element from direct media contact while ensuring stable pressure transmission.
The compact sensor body with a diameter of 12.6 mm allows easy integration into pressure transmitters, hydraulic equipment, and embedded measurement systems. Integrated temperature compensation improves measurement stability across varying operating temperatures.
With its 316L stainless steel housing and robust mechanical design, the GP-2000 offers strong resistance to overload and mechanical stress. These characteristics make the sensor suitable for applications such as hydraulic systems, pumps, loading machinery, and industrial process control where stable pressure sensing is required under demanding operating conditions.

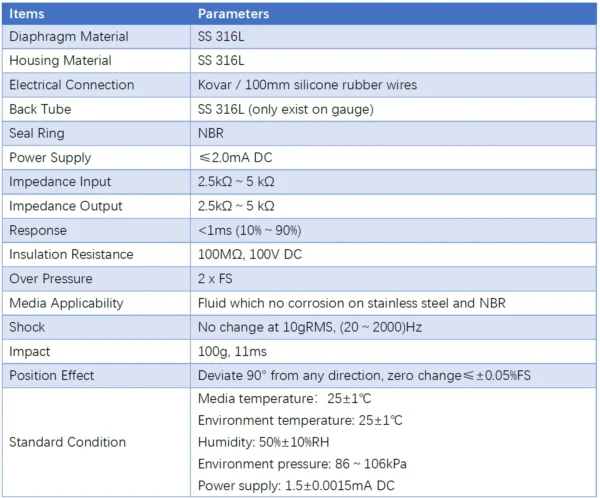

| Items | Parameters |
|---|---|
| Diaphragm Material | SS 316L |
| Housing Material | SS 316L |
| Electrical Connection | Kovar / 100mm silicone rubber wires |
| Back Tube | SS 316L (only exist on gauge) |
| Seal Ring | NBR |
| Power Supply | ≤2.0mA DC |
| Impedance Input | 2.5kΩ～5 kΩ |
| Impedance Output | 2.5kΩ～5 kΩ |
| Response | <1ms (10%～90%) |
| Insulation Resistance | 100MΩ, 100V DC |
| Over Pressure | 2 x FS |
| Media Applicability | Fluid which no corrosion on stainless steel and NBR |
| Shock | No change at 10gRMS, (20～2000)Hz |
| Impact | 100g, 11ms |
| Position Effect | Deviate 90° from any direction, zero change≤±0.05%FS |
| Standard Condition | Media temperature：25±1℃ Environment temperature: 25±1℃ Humidity: 50%±10%RH Environment pressure: 86～106kPa Power supply: 1.5±0.0015mA DC |

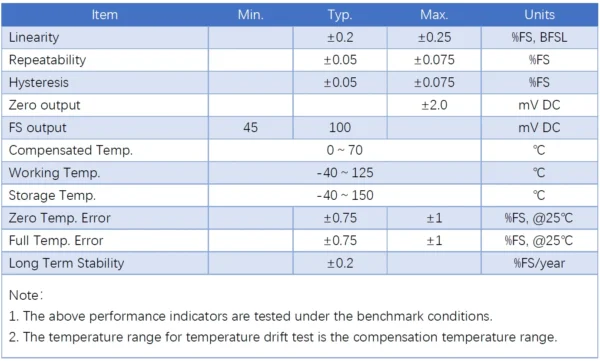

| Item | Min. | Typ. | Max. | Units |
|---|---|---|---|---|
| Linearity | ±0.2 | ±0.25 | %FS, BFSL | |
| Repeatability | ±0.05 | ±0.075 | %FS | |
| Hysteresis | ±0.05 | ±0.075 | %FS | |
| Zero output | ±2.0 | mV DC | ||
| FS output | 45 | 100 | mV DC | |
| Compensated Temp. | 0～70 | ℃ | ||
| Working Temp. | -40～125 | ℃ | ||
| Storage Temp. | -40～150 | ℃ | ||
| Zero Temp. Error | ±0.75 | ±1 | %FS, @25℃ | |
| Full Temp. Error | ±0.75 | ±1 | %FS, @25℃ | |
| Long Term Stability | ±0.2 | %FS/year | ||
| Note： 1. The above performance indicators are tested under the benchmark conditions. 2. The temperature range for temperature drift test is the compensation temperature range. | ||||
