GP-1900 To-8 Pressure Sensor
Range from 20 kPa to 1 MPa
Gauge, absolute and differential types
Constant current power supply
Temperature compensation
TO-8 package for PCB mounting
For non-corrosive gases and liquids
The GP-1900 TO-8 pressure sensor is a compact MEMS-based sensing device designed for precise pressure measurement in space-constrained instrumentation. The sensing die is packaged in a TO-8 metal housing, enabling reliable PCB integration while providing stable mechanical protection.
Pressure applied through the sensor port is transmitted directly to the silicon sensing element. The sensor converts pressure into a proportional voltage signal through a linear relationship. Integrated temperature compensation and linear correction ensure consistent measurement performance across the compensated temperature range.
The GP-1900 supports gauge, absolute, and differential pressure measurement configurations, allowing flexible integration into a wide range of industrial and laboratory instruments. Its constant current excitation design simplifies signal conditioning in embedded measurement circuits.
Due to its compact TO-8 structure and stable MEMS sensing technology, the GP-1900 is suitable for instrumentation systems, gas pressure monitoring, laboratory measurement devices, and embedded control systems requiring reliable pressure sensing on printed circuit boards.

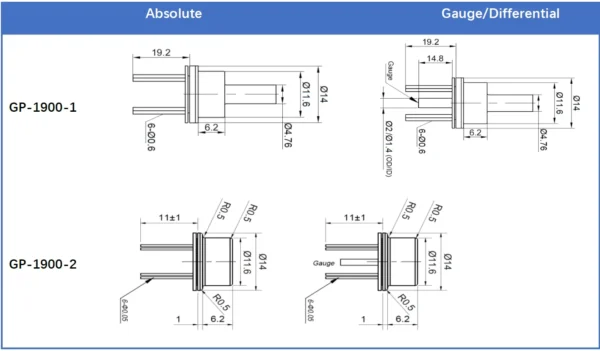

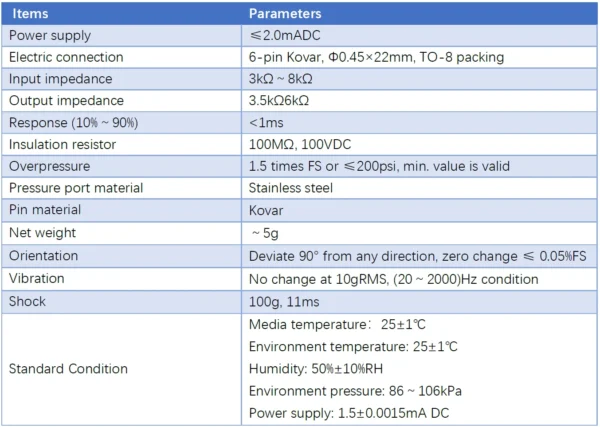

| Items | Parameters |
|---|---|
| Power supply | ≤2.0mADC |
| Electric connection | 6-pin Kovar, Φ0.45×22mm, TO-8 packing |
| Input impedance | 3kΩ～8kΩ |
| Output impedance | 3.5kΩ～6kΩ |
| Response (10%～90%) | <1ms |
| Insulation resistor | 100MΩ, 100VDC |
| Overpressure | 1.5 times FS or ≤200psi, min. value is valid |
| Pressure port material | Stainless steel |
| Pin material | Kovar |
| Net weight | ～5g |
| Orientation | Deviate 90° from any direction, zero change ≤ 0.05%FS |
| Vibration | No change at 10gRMS, (20～2000)Hz condition |
| Shock | 100g, 11ms |
| Standard Condition | Media temperature：25±1℃ Environment temperature: 25±1℃ Humidity: 50%±10%RH Environment pressure: 86～106kPa Power supply: 1.5±0.0015mA DC |

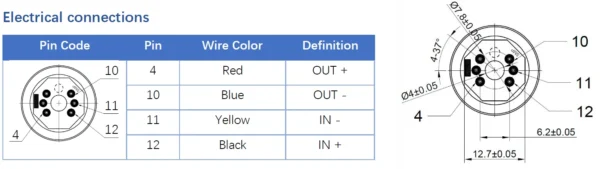

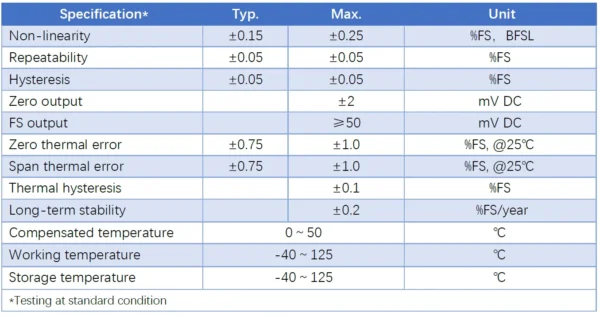

| Specification* | Typ. | Max. | Unit |
|---|---|---|---|
| Non-linearity | ±0.15 | ±0.25 | %FS，BFSL |
| Repeatability | ±0.05 | ±0.05 | %FS |
| Hysteresis | ±0.05 | ±0.05 | %FS |
| Zero output | ±2 | mV DC | |
| FS output | ≥50 | mV DC | |
| Zero thermal error | ±0.75 | ±1.0 | %FS, @25℃ |
| Span thermal error | ±0.75 | ±1.0 | %FS, @25℃ |
| Thermal hysteresis | ±0.1 | %FS | |
| Long-term stability | ±0.2 | %FS/year | |
| Compensated temperature | 0～50 | ℃ | |
| Working temperature | -40～125 | ℃ | |
| Storage temperature | -40～125 | ℃ | |
| *Testing at standard condition | |||
