GP-2710 Intelligent Pressure Sensor
Built-in MCU for intelligent processing
Flexible configuration
RS485, I2C, and SPI interfaces
Programmable via Modbus over RS485
Accuracy up to ±0.03% FS (TEB)
Integrated high-precision temperature sensor
Supports low-power operation for embedded systems

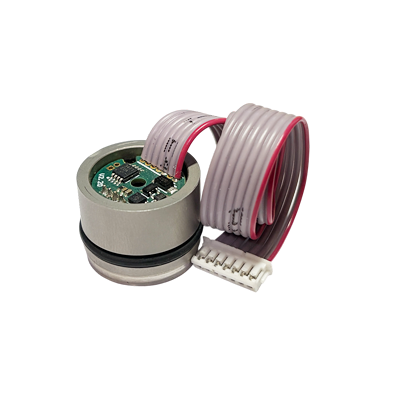

The GP-2710 Intelligent Pressure Sensor integrates an onboard MCU, advanced compensation algorithms, and flexible communication interfaces into a standard Φ19 mm OEM sensor form factor. Compared with traditional ASIC-based digital sensors, it offers greater configurability, improved system integration flexibility, and transmitter-level accuracy up to ±0.03% FS.
Supporting RS485, I2C, and SPI communication, the sensor can be configured via Modbus software for unit switching, range scaling, and operating mode selection. Optional interface boards enable rapid development of voltage, current, or RS485 pressure transmitters with reduced hardware complexity and lower manufacturing costs.
