GA-YQ2 Gas-Liquid Isolator
Effective gas-liquid isolation
Designed for calibration benches
Protects gauges from contamination
Compact and lightweight design
Simple manual installation
Reliable operation up to 6 MPa
The GA-YQ1 Liquid Isolator is designed for reliable isolation of liquid media during pressure instrument calibration and maintenance. It is widely used for oxygen gauges, acetylene gauges, and other sensitive pressure devices.
By using a high-strength diaphragm, the isolator completely separates the upper and lower media chambers, preventing oil, water, and contaminants from mixing. This effectively protects calibration equipment and test instruments from external contamination.
With a pressure rating of up to 60 MPa, quick-connect M20×1.5 interfaces, and a large 120 mL upper chamber, the GA-YQ1 ensures stable pressure transmission and long-term operational reliability. Its simple filling and maintenance procedure makes it suitable for laboratories, calibration centers, and industrial service environments.
A Case of Pressure Hand Pump Failure Caused by Contaminated Fluid
Troubleshooting a Pneumatic Hand Pump with Pressure Loss
Measuring Range: 0 – 6 MPa
Port In Connection: M20 × 1.5 Male
Port Out Connection: M20 × 1.5 Female
Weight: Approx. 1 kg

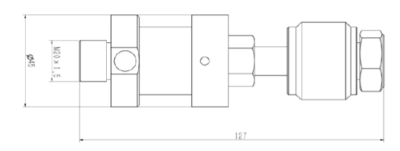

Dimensions: Ø45 mm × 127 mm
Operating Temperature: +10 °C to +110 °C
Working Medium: Gas (with liquid isolation)
Isolation Method: Diaphragm separation
Components
